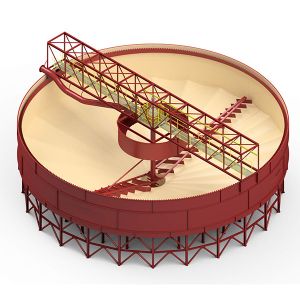

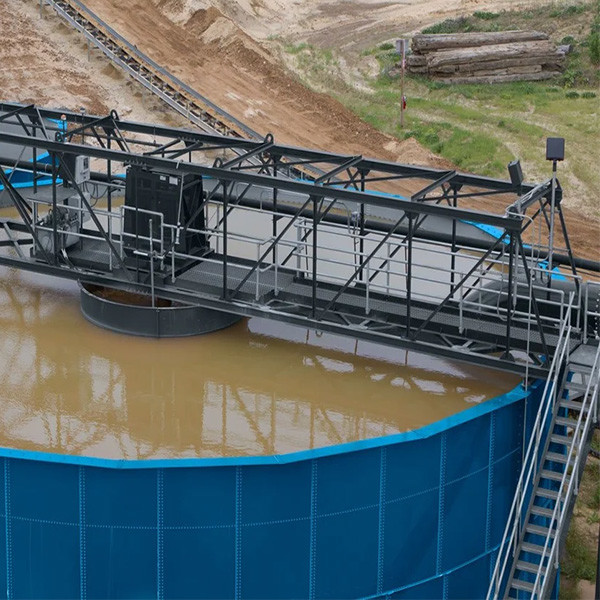

Diameter 10M Steel Frame Thickener Equipment Flocculant Settling Device
The thickener is the industrial unit in which the concentration of a suspension is increased by sedimentation, with the formation of a clear liquid. In most cases, the concentration of the suspension is high and hinded settling takes place. Thickeners may operate as batch or continuous units, and consist of tanks from which the clear liquid is taken off at the top and the thickened liquor at the bottom.
The operation of the thickener must accommodate fluctuations – control for disturbances – in the process feed stream to deliver a clear overflow and thickened underflow. This control is achieved by manipulating both the flocculant addition and the rate of underflow withdrawal (typically pumping). The flocculant addition should be adjusted to suit the solids input and is mostly affected by the processing rate. Simple systems with constant feed can use flocculant pump speed control, more advanced control systems utilize a ratio controller to maintain a constant “grams per ton” dose rate. Unfortunately, fluctuations in ore type can significantly change the dosage of flocculant required and require a feedback to the “grams per ton” constant.
1 | Center Drive Thickener | The whole equipment is consisted of tank, drive, material feeding, drainage section, rake and rake lifting device. According to the requirement of client, it can be divided into three types, i.e. center hydraulic hi-efficient thickener, center drive thickener and hi-efficient thickener. New structure and control are much convenience to speed up the material settling, increase capacity per unit area and reduce the turbidity of overflow. |
| 2 | Periphery Drive Thickener | Adopt new technologies of heavy pivoting support, wheel chain drive, drive torque, thickness of settlings, density of drainage slurry detection, PLC centralization control, which achieves characteristics of bigger drive torque, higher overload capacity, stable operation, hi-efficient concentration, widely application, etc. |
| 3 | Deep Cone Thickener | Deep cone thickener is a new designed full automatic, hi-efficient and continuously operation dewatering equipment based on countercurrent settling, sedimentary compression theory and combined with inclined plate and flocculant assisting settlement technology. |
Techncial Paramter:
| Description | Specification |
| Diameter of Tank | 30 |
| Depth of Tank | 5 meter |
| Setteing Area254 | 256 m2 |
| Lifting Height of Rake | 350mm |
| Rotating Time of Rake | 5 ~ 30 mm/min |
| Motor Power | 10 kW |
| Max Torque | 221.4kN |
Features and Benefits:
| 1 | Feeding section designs allows thickeners to achieve maximum density underflow with reduced needs for polymers. |
| 2 | Auto-dilution options further increase the rate of settling of particles to reduce the size of equipment required and maximize thickener clarity and underflow density. |
| 3 | Advanced automation and remote assistance packages are available for all equipment lines. |
| 4 | Thickener comes with density monitoring systems that allow for optimal control of bed level, underflow density and automation of underflow pumping and rake lift settings. |
Our Thickener Equipment product is designed to provide efficient and reliable thickening performance for a variety of applications. To ensure optimal operation and longevity, we offer comprehensive technical support and services, including:
Q: What is the brand name of this thickener equipment?
A: The brand name of this thickener equipment is UNIVEE.
Q: What is the model number of this thickener equipment?
A: The model number of this thickener equipment is U-TE-10.
Q: Where is this thickener equipment manufactured?
A: This thickener equipment is manufactured in China.
|
|
