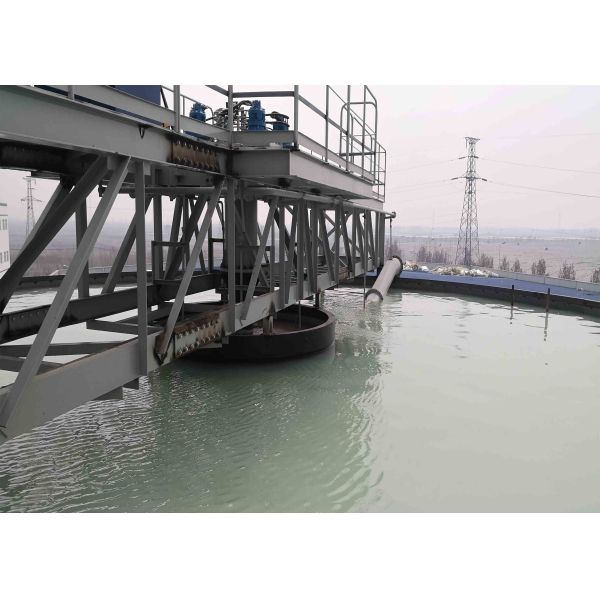

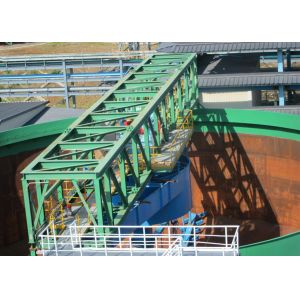

Economic Condition Slurry Clarifying Thickener for Tailing Treatment

1. Brief Description

Thickener is a type of solid-liquid separation equipment by gravitational sedimentation. The tapered bottom of thickener is a cylinder groove, consisted of concrete, wood or metal plates. Thickener can settle and concentrate the slurry solid density from 10~20% to 45~55% under the function of gravitation via the thickener rake. The thicken slurry is discharged from the bottom of thickener.

2. Section Drawing of Thickener

3. Working Principle

During the thickening process, particles suspended in slurry is settled under the gravity force. At the settlement moment, the particles sink at acceleration by gravity function. After that, due to the water resistant, the acceleration of particle reduced, till the resistant force is same with particle gravity. Then the gravity keeps a constant settlement rate, which is called the final settling velocity.

If the density of thicken slurry is small, it can ignore the collision and interreference between particles during settlement process. We call this free settling.

During the continuous thickening equipment, the settlement and concentration can be divided into clarifying section, settling section, pressing section and squeezing section.

4. Technical Flowchart

5. Advantages of Thickener

Combined with hi-efficient thickener principle and design philosophy, the unit area capacity increased, good dewatering efficiency, easy to achieve hi-efficient operation.

6. FAQ

Q1: How to process an order for thickener?

A: The product is customized, first of all, please provide your requirement details, our engineers will provide the prelimianry plan for your reference.

Q2: Do you offer guarantee?

A: Yes, we offer one year guarantee from the date of commissioning.

Q3. Can you offer Design Service?

A: Yes, we could design full solution drawings as per client's request.

Univee（Chongqing）Electrical Technology Co., Ltd (hereinafter UNVIEE) is a professional company, specialized in electromechanical equipment research and development, manufacturing, sales and installation. UNIVEE devotes to customized equipment design, manufacture and technical services in solid-liquid separation, industry sewage/waste gas treatment, mine tailings treatment and recycle, solid waste harmless treatment, municipal sewage and waste treatment.

UNIVEE has strong professional design and technical service experience. The core department of UNIVEE is consisted with Chinese specialists who are from a UK leading company, Delkor in solid-liquid separation equipment field. The technical team of UNIVEE has been continuously improved, innovated, optimized in these years by combining Delkor solid-liquid theory, Chinese technical standard and newest international standard, we formed an advantage solid-liquid theory and applied into practice, which are successfully in each kind of environmental protection, sewage/waste gas treatment and solid-liquid industries of UNIVEE’s.

We adheres “Integrity, Prosperity, Innovation” principle to cooperate with our clients and create a better green future.

Main scope of supply: Horizontal vacuum belt filter (HVBF), Ceramic vacuum filter (CVF), Hi-efficient thickener (HT), Deep cone type thickener (DCT), Vertical filter press (VFP), Squeezing filter (SF), Pressure filter (PF), Hydocyclone (HC), etc., which is widely applicated in energy source, chemical industry, mine, metallurgy, fertilizer, pharmacy, food industry, power plant (FGD), paper, textile and printing, sewage treatment, tailing treatment and municipal sewage/waste gas purification, recycle and solid-liquid separation fields.

Our company has an experienced technical developing team, with capability of specialized design, installation, aftersales support and guarantee, providing professional technical services and operation management supports. During the market developing, UNIVEE also cooperated with related research institutes and companies for technology and projects.
