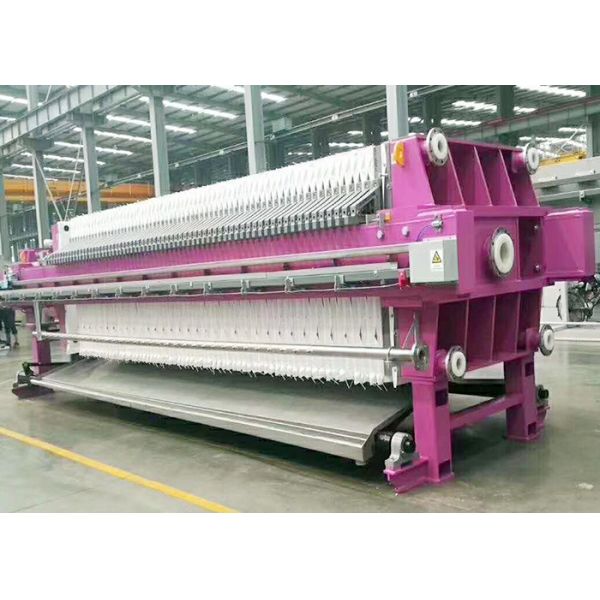

Sludge Plate Filter Press SIEMENS PLC Control Ground Installation Dewatering
Press filter is consisted with filter plate, filter frame, filter cloth and press diaphragm.
The filter plate is consisted with diaphragm plate and side plate. Tow sides of diaphragm base plate are covered by rubber diaphragm. Cloth is on outside of the plate. The slurry enters into the press filter and flows from the holes of thrust plate. Solid size bigger than the medium or cloth is blocked in the filtration chamber. The filtrate is flows out from the bottom drainage holes of filter plate.
| Frame | Frame is the basic component of filter press. Thrust plate and compass plate is on the two side of filter press, connected by side beams. Main beam supports the filter plate, filter frame and press plate. |
| Thrust plate | Thrust plate connects filter press and foundation. The feeding hole of chamber type filter press is in the middle of thrust plate, other four holes are on four corners. The upper two holes are inlet of cleaning solution and compressed air; the lower holes are outlet. |
| Compass plate | Compass plate uses to press the filter plate and filter frame tightly, the rollers on two side to compass plate can slide on the rail of main beam. |
| Main beam | Bearing components, according to the corrosion requirement, it can choose rigid polyvinyl chloride (RPVC), polypropylene (PP), stainless steel or new anticorrosive coating, etc. |
| Filter Area (㎡) | Outer Plate Slze (mm) | Inside Frame Size ((mm) | Cake Thickness (mm) | Number of Plate and Frame (Pair) | Chamber Volume (L) |
| 20 | 900x900 | 800×600 | 30 | 17 | 300 |
| 30 | 25 | 450 | |||
| 40 | 33 | 600 | |||
| 50 | 41 | 750 | |||
| 60 | 50 | 900 | |||
| 70 | 58 | 1050 |
| Pharmacy |
| Chemical Industry |
| Metallurgy |
| Food |
| Brewing Industry |
| Ceramic |
| Petroleum |
Sewage Treatment |
Our Press Filter product comes with comprehensive technical support and services to ensure optimal performance and longevity:
Product Packaging:
Shipping:
Q: What is the brand name of this press filter?
A: The brand name is UNIVEE.
Q: Where is this press filter manufactured?
A: This press filter is manufactured in China.
Q: What is the filtering capacity of this press filter?
A: The filtering capacity of this press filter varies depending on the model and specifications. Please refer to the product manual or contact customer support for more information.
|
|
