Univee （Chongqing）Electrical Technology Co., Ltd
2 Years
| Ask Lasest Price | |
| Brand Name : | UNIVEE |
| Model Number : | U-FC |
| Certification : | ISO |
| Price : | Customized |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 100 sets per month |
| Delivery Time : | 4-6 weeks |

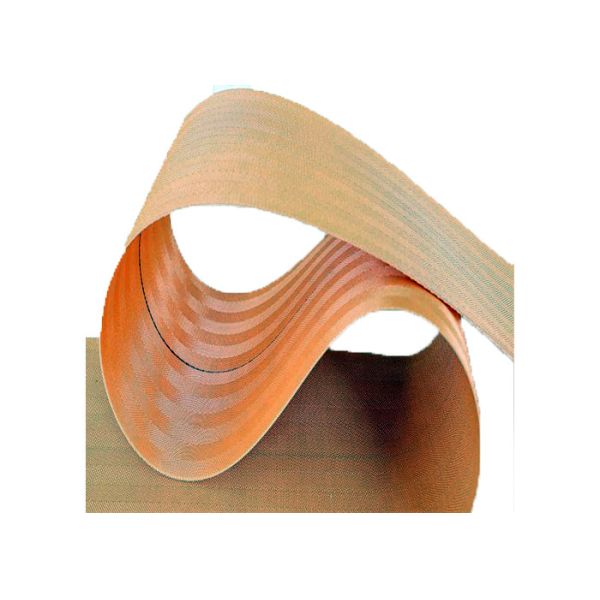

Double Layer Liquid Filter Fabric Cloth PET Material 1mm Thick
Filter cloth mainly includes: polyester filter cloth, polypropylene filter cloth, nylon filter cloth, Vinylon filter cloth.
This type of fabric is generally used in solid-liquid separation but also in air filtration, either directly or as a support for finer specific filter media.
For the filter cloth, its service life is not only affected by the wear of the material itself, but, more importantly, the corrosion of the working material on the filter cloth, therefore, the requirements for industrial filter cloth are very high
| Good trapping effect of solid objects ensure long life span. |
| Fast filtration speed |
| Less blockage |
| Stable filtration speed |
| Good stripping property |
| No Expansion |
| Stable characteristics |
| Material | Air Permeability (L/m2.S) at 200Pa | Water Permeability (L/m2.S) at 1200Pa | Thickness (mm) | Weight (g/m2) | Interception accuracy (μm) | Acid Resistant | Alkali Resistant |
| PET | 80~100 | 5.0~6.0 | 1.15 | 983 | 8~10 | Excellent | Excellent |
| PET | 160~190 | 18~20 | 1.12 | 983 | 20~25 | Excellent | Excellent |
| PET | 250~300 | 20~23 | 1.00 | 810 | 30~35 | Excellent | Excellent |
| PET | 350~400 | 23~25 | 1.00 | 810 | 30~35 | Excellent | Excellent |
| PET | 450~500 | 26~30 | 1.08 | 818 | 50~60 | Excellent | Excellent |
The UNIVEE U-FC filter cloth has various product application occasions and scenarios, which include:
| Customized design |
| Equipment supply |
| Installation and commissioning |
| Operator training and process optimization |
| Routine maintenance and troubleshooting |
| Spare Parts and consumables |
UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.
Type of Packing:
| Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case. |
| Packed with fumigation package |
| Packed in plastic lorap, double bister and jute rope |
Q: What is the brand name of the filter cloth?
A: The brand name of the filter cloth is UNIVEE.
Q: Where is the filter cloth manufactured?
A: The filter cloth is manufactured in China.
Q: What is the maximum temperature that the filter cloth can withstand?
A: The filter cloth can withstand temperatures up to 120 degrees Celsius.
|
|
