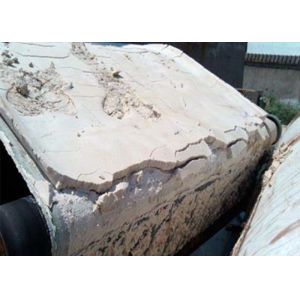

20m2 Filtration Area Horizontal Belt Filter for Sludge Vacuum Separation and Dewatering
Horizontal Vacuum Belt Filter(HVBF)is a kind of hi-efficiency solid-liquid separation equipment. With the supporting of vacuum box, the rubber belt is slipping on the vacuum box, which a sealing movement structure is formed between vacuum box and belt. The solid-liquid separation is achieved by a negative vacuum pressure.
The Horizontal Vacuum Belt Filter is a type of continuous vacuum filter that is designed to handle a wide range of materials. The belt filter also can maximize separation efficiency with economic costs.
| 1 | Filter Cloth Washing | 8 | Filter Cloth Tension Unit |
| 2 | Belt Washing | 9 | Discharge Roll |
| 3 | Cake Washing Box | 10 | Drive Pulley |
| 4 | Slurry Feeding Hopper | 11 | Driven Pulley |
| 5 | Rubber Belt | 12 | Vacuum Box |
| 6 | Filter Cloth | 13 | Filter Support Frame |
| 7 | Filter Cloth Tracking Unit |
| Assembled frame block-design |
| High automatic control |
| Reduce operation cost |
| Reduce the working strength of labors |
| Improve working enviroment |
| High filtration speed |
| Good washing quality |
| Lower moisture content |
| Control System | PLC Or DCS |
| Filtration Area | 10-1000 M2 |
| Drive System | Variable Speed Drive |
| Application | Solid-Liquid Separation |
| Filter Cake Wash | Counter-Current Wash |
| Type | Continuous Vacuum Filter |
| Filter Cake Discharge | Scraper Or Belt Press |
| Material Of Construction | Stainless Steel Or Carbon Steel |
| Operation | Continuous |
| Vacuum Source | Vacuum Pump |
Our team of experienced engineers and technicians is dedicated to ensuring that your Horizontal Belt Filter operates at peak performance and delivers reliable, consistent results. Contact us to learn more about our product technical support and services.
Product Packaging:
Shipping:
Q: What is the brand name of this horizontal belt filter?
A: The brand name of this horizontal belt filter is UNIVEE.
Q: What is the model number of this horizontal belt filter?
A: The model number of this horizontal belt filter is U-HVBF.
Q: Do you offer guarantee?
A: Yes, we offer one year guarantee from the date of commissioning.
Q: Can you offer Design Service?
A: Yes, we could design full solution drawings as per client's request.
|
|
