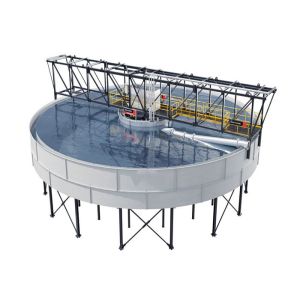

PLC Control Thickenering Equipment Water Treatment Thickener Gravity Function
The whole equipment is consisted of tank, drive, material feeding, drainage section, rake and rake lifting device. According to the requirement of client, it can be divided into three types, i.e. center hydraulic hi-efficient thickener, center drive thickener and hi-efficient thickener. New structure and control are much convenience to speed up the material settling, increase capacity per unit area and reduce the turbidity of overflow.
One of the key features of this thickener equipment is its high efficiency in separating liquid from solids, with low energy consumption.
The capacity of thickener equipment is ranging from 12-360t/d, making it suitable for a wide range of industrial applications. It can be installed either vertically or horizontally, depending on the needs of the user.
The Thickener Equipment is an excellent investment for any industry that requires efficient solid-liquid separation.
| Center buffing and deep slurry feeding, no feeding impact |
| Center hydraulic drive, with automatic rake protection |
| Adopt central reversal cone hopper, tailings squeezed twice, density of tailings increased, more stable. |
| Reasonable slurry reforming structure, increase the concentration efficiency |
If the density of thicken slurry is small, it can ignore the collision and interreference between particles during settlement process. We call this free settling.
If the density of thicken slurry is big, the mechanical resistant between particles during settlement process will be big. We call this interreference settling.
The settling speed of free settling is fast than interreference one.
During the continuous thickening equipment, the settlement and concentration can be divided into clarifying section, settling section, pressing section and squeezing section.
Due to the difference between feeding and drainage, the dynamic balancing status is destroyed, the height of sections changed. To ensure the thickening process operating smoothly, the height of clarifying section: ≥ 0.2~0.3m, height of settling section: ≥ 0.3~0.5m,
Techncial Paramter:
| Description | Specification |
| Diameter of Tank | 9 |
| Depth of Tank | 3.7 meter |
| Setteing Area254 | 63 m2 |
| Lifting Height of Rake | 350mm |
| Rotating Time of Rake | 5 ~ 30 mm/min |
| Motor Power | 5.5 kW |
| Max Torque221.4 | 221.4kN |
It is mainly for concentration of fine mine, washing, dewatering and tailings in wet mineral separation, it is also widely used for concentration and purification in coal industry, steel plant, chemical industry, construction materials, cement, sewage treatment, etc.
Q: What is the brand name of this thickener equipment?
A: The brand name of this thickener equipment is UNIVEE.
Q: What is the model number of this thickener equipment?
A: The model number of this thickener equipment is U-TE-18.
Q: Where is this thickener equipment manufactured?
A: This thickener equipment is manufactured in China.
Q: Is this thickener equipment suitable for industrial use?
A: Yes, this thickener equipment is designed for industrial use and is suitable for a variety of applications.
|
|
